Used Volvo Hydraulics for Construction Equipment

Volvo Hydraulic System: From Pump to Actuators

On a Volvo excavator, the diesel engine drives one or two variable displacement main hydraulic pumps. The valve directs this high-pressure flow to the boom, arm, and bucket cylinders, as well as the swing motor and, via the slewing ring, to the travel gear motors. On a loader or articulated hauler, a dedicated hydraulic pump powers the steering, while a separate circuit manages lifting or the dump body. The oil cooler and filtration keep the Volvo hydraulic system at the correct temperature and clean.

Volvo Hydraulic Pumps, Motors, and Valves

• Valves: main Volvo hydraulic valves, valve blocks, and solenoid valves.

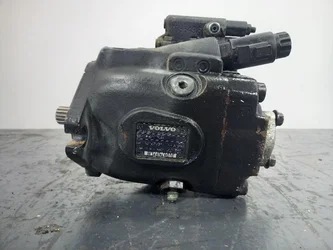

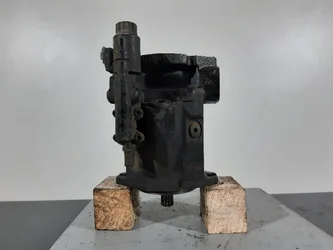

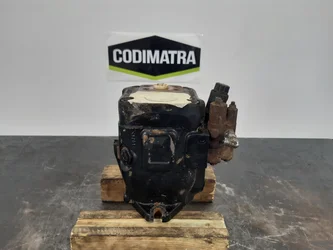

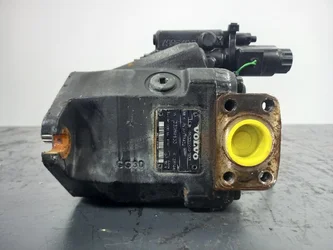

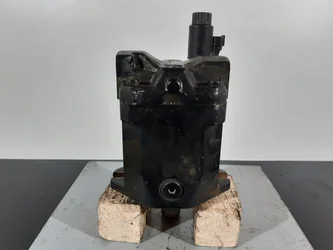

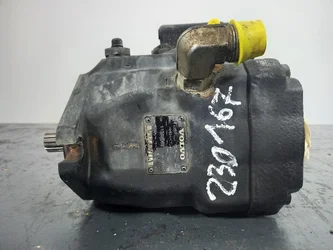

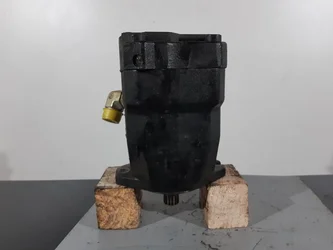

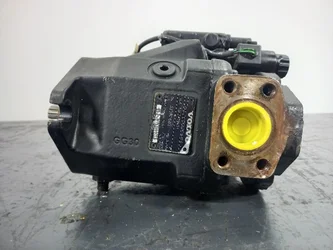

• Pumps: main Volvo hydraulic pumps, secondary pumps, steering pumps, and travel pumps.
• Motors: Volvo hydraulic motors for swing, travel, or propulsion.
• Travel: travel and swing gear motors.
• Accessories: slewing rings, oil coolers, and lubrication units.

Volvo Hydraulic Excavators on Tracks and Tires

Our stock covers a broad range of Volvo CE tracked hydraulic excavators, from EC140B to EC750E, including EC160B, EC210B, EC210C, EC240B, EC290B, EC360C, and EC460B models. Volvo wheeled excavators are also available, from EW140B to EW160D, including the short-radius EWR150E. Depending on the boom and arm length, the equipment cylinders vary by part number. Each part bears the reference number of the original machine's component plate, including model and year, enabling our technicians to quickly cross-check with your component's tag.

Volvo Mini Excavators, 50-ton Excavators, and Loaders

• Mini and Compact Excavators: EC55C, ECR88D, ECR145EL, and ECR235DL.
• Large Excavators: EC380D, EC460B, as well as excavators 50 tons and above like EC700CL and EC750E.
• Wheeled Loaders: from L30G to L220G, including L70F, L90G, L120F, and L180E.
• Articulated Haulers: A25C to A35D, including A25F and A30E.
• Other Construction Equipment: BL71 backhoe loader.

Volvo Hydraulic Oil and Filter: Proper Reassembly

A broken hydraulic pump or motor often leaves particles in the Volvo hydraulic system. Before installing the used part, drain the Volvo hydraulic oil, replace every hydraulic filter, and flush the circuit if contamination has occurred. Also, inspect the oil cooler and hoses thoroughly. Installing an original part in a clean system restores factory flow and pressure settings, ensuring long-lasting service.

Volvo Cylinder or Hydraulic Block: Identifying the Part

• Machine: model, series (B, C, D, E), year, and serial number.
• Part Reference: Volvo part number from the component plate.
• Position: boom, arm, or bucket cylinder; section of the valve block.
• Length: pin-to-pin length and stroke for cylinders; hose and piping lengths.
• Connections: number, position, and diameter of ports.
• Photos of the installed part and its plate. For cylinders, see also our used Volvo cylinders.

Codimatra, Your Volvo Hydraulic Parts Inventory

For over 40 years, Codimatra has carefully selected Volvo construction machines to dismantle and tests every Volvo hydraulic component in our workshop before resale: sealing, shaft play, condition of seats and fittings. Each part retains the identification of its original machine and year. Our specialized construction equipment technicians reference approximately 17,000 part numbers and verify compatibility based on your serial number. To broaden your search, explore our hydraulics range for all brands. Shipping from Castelculier, near Agen. Get a quote at 05 53 96 16 43.
